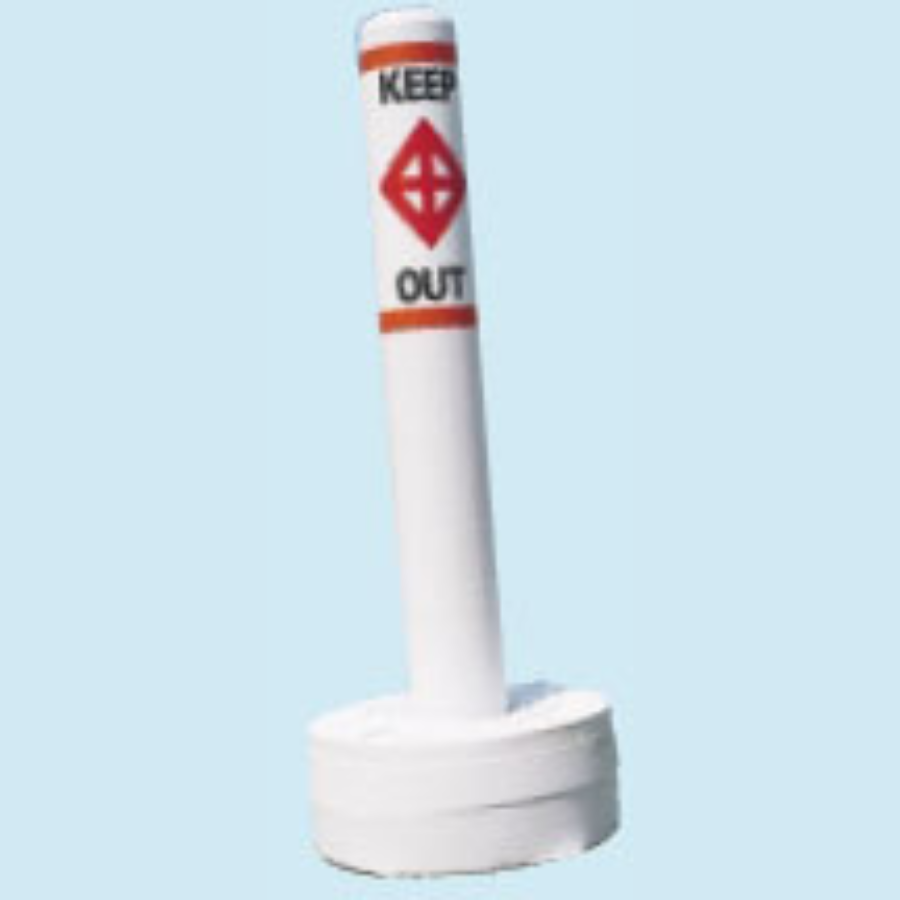

Sombrero Buoy 2020-Riser
The 2020 is a sombrero-style regulatory Jim Buoy featuring a narrow riser mounted on a wide 30 in base, giving the buoy its distinctive profile. The wide base provides stability in open water and is designed to float with 35-40 lbs of chain. Reinforced concrete internal ballast and 200 stock labels are included.
Features
- High-density polyethylene shell
- 2-3 lb. density polyurethane internally foamed to waterline
- Reinforced concrete internal ballast
- 1/2 in galvanized steel eye-bolt
- Designed to float with 35-40 lbs of chain
- 200 stock labels included
- Orange, red, green, or silver reflective tape available
- Full foam fill available upon request
Specifications
| Specification | Detail |
|---|---|
| Riser Diameter | 9 in |
| Base Diameter | 30 in |
| Height | 60 in |
| Weight | 98 lbs |
| Material | High-density polyethylene shell with polyurethane foam |
| Color | White |
| Reflective Tape | Orange, red, green, or silver available |
Optional Additions
- Pick-up eye
- Radar reflectors
- Solar light (#9000)
- External ballast
- 2 in wide aluminum band
